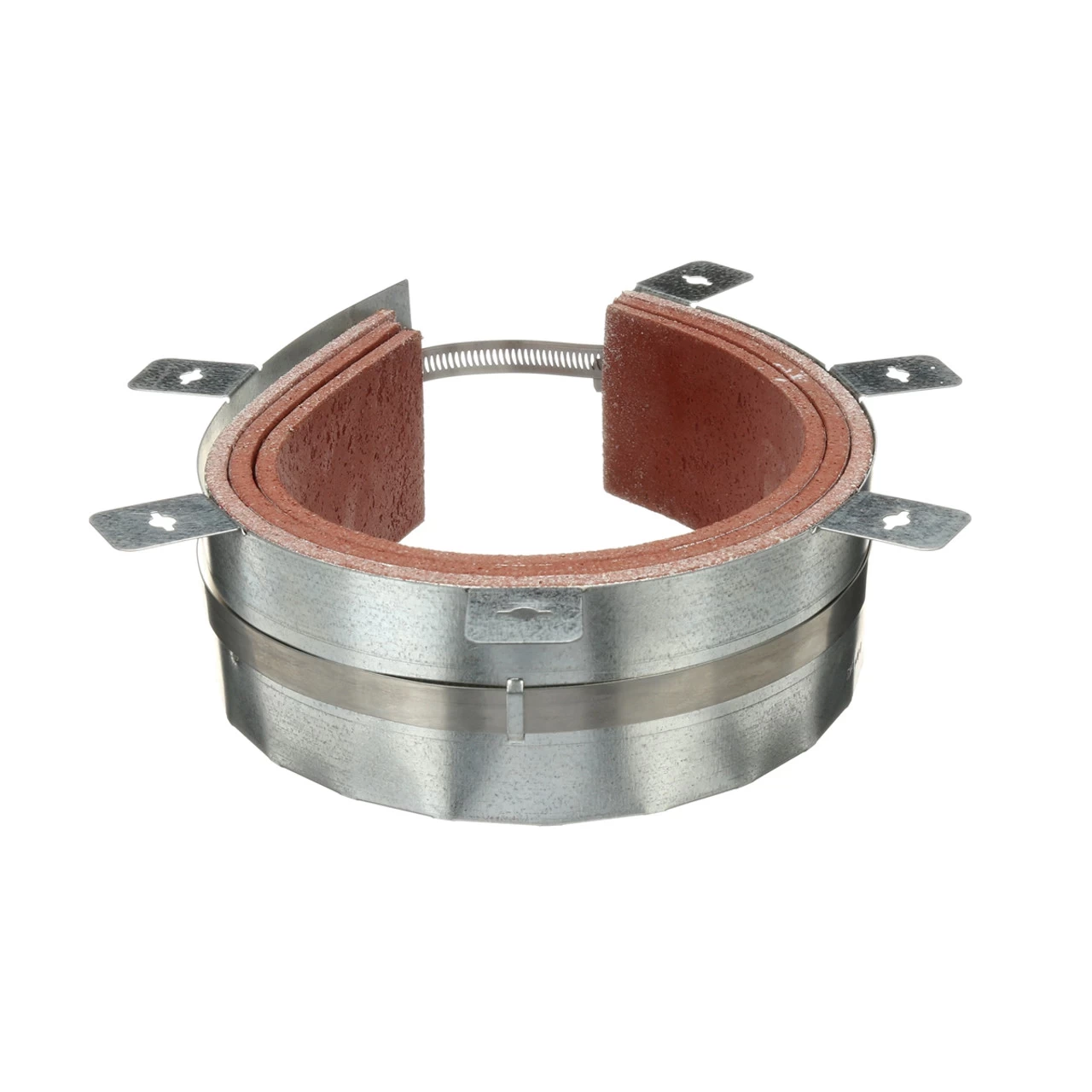

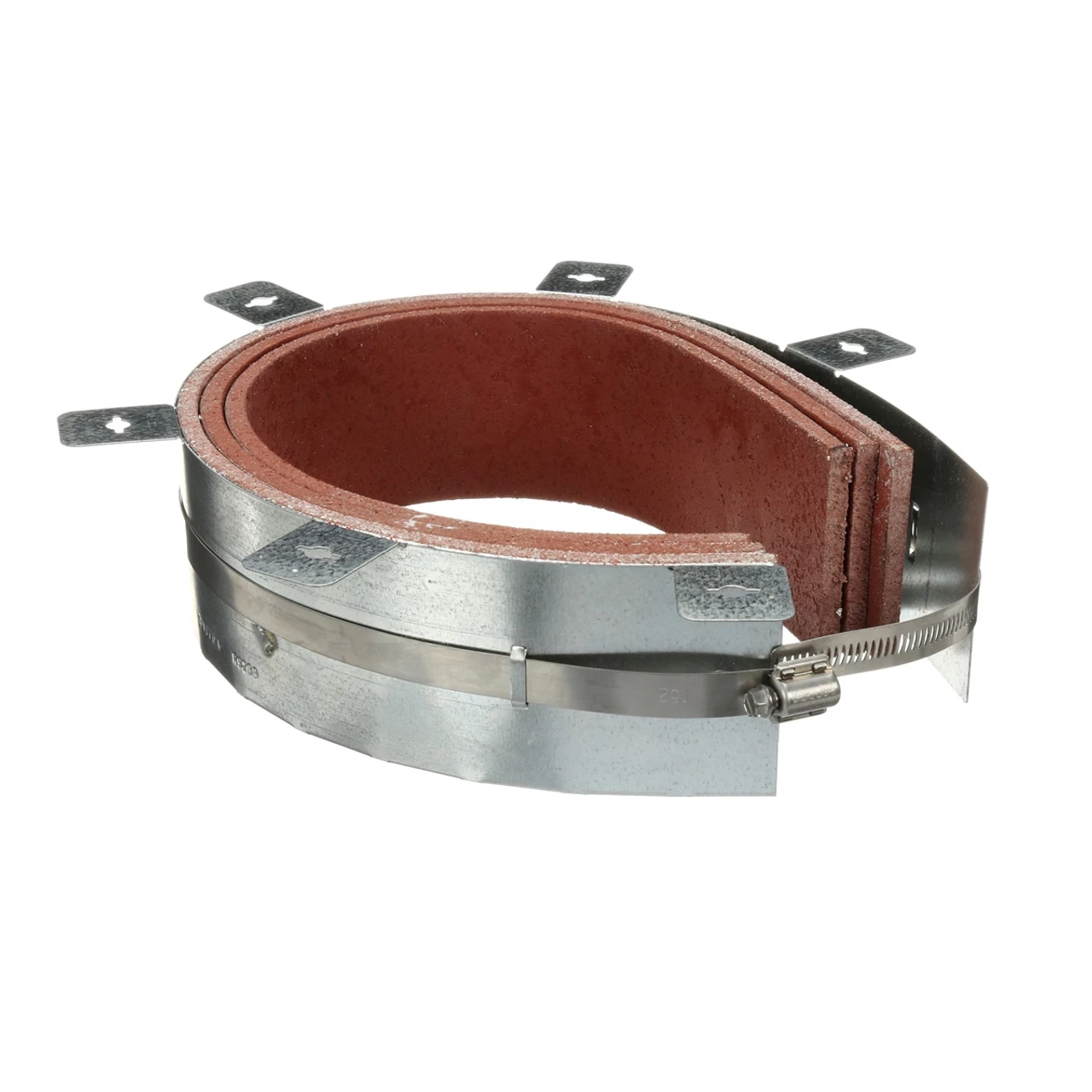

3M™ Fire Barrier Plastic Pipe Device, PPD6

The 3M Fire Barrier Plastic Pipe Device is designed to firestop up to six inches of non-metallic pipe in new and retrofit installations. It provides up to two hours fire protection in tested and listed systems. This device easily mounts with conventional mounting hardware such as toggle bolts for gypsum or masonry anchors for concrete (hardware sold separately).

Features

• Firestop tested up to 2 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC S115
• Durable one-piece metal collar assembly encasing 3M™ Fire Barrier Wrap Strip FS-195+ intumescent material (no assembly required)
• Embossed with trademarked 3M and red colour (easily identified as a firestop device)
• Used to firestop 6 inch (152.4 mm) PVC, CPVC, FRPP, PVDF, ccABS and ABS pipes penetrating 1- and 2-hour fire-rated gypsum wallboard and fire-rated concrete wall, floor or hollow core assemblies
• May be applied to drain, waste and vent or closed pipe systems



• Fire Rating: 2 Hour
• Product Family: Fire Barrier Ultra PPD
• Product Type: Plastic Pipe Device
