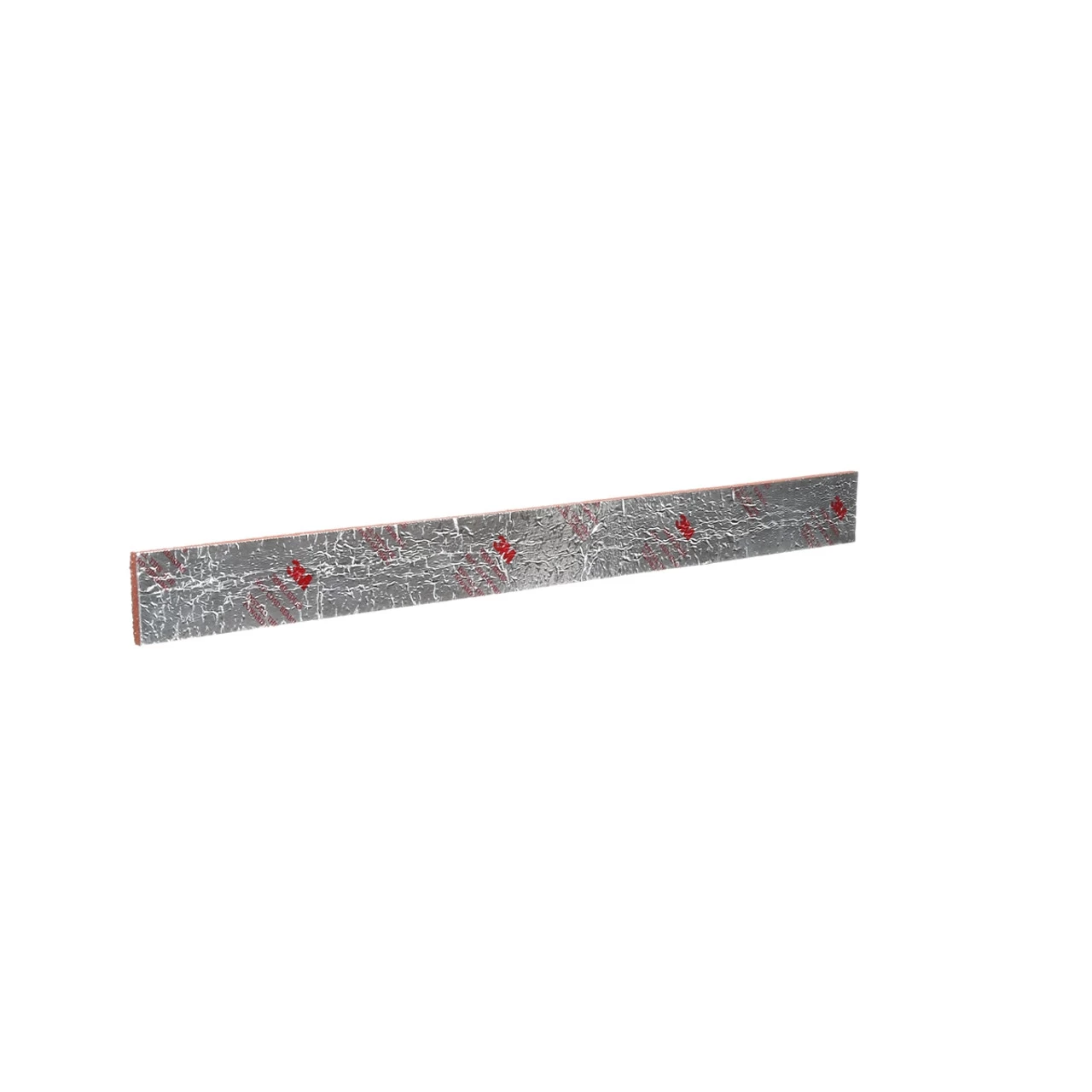

3M™ Fire Barrier Wrap Strips, FS-195+, 2 in x 24 in

These fire-resistive wraps with foil on one side are designed to firestop penetrations in fire-rated floor, wall and floor/ceiling assemblies.

The 3M Fire Barrier Wrap Strips FS-195+ are intumescent wraps that offer up to 4 hours of fire protection in tested and listed systems. Often used for “in-hole” firestop installations or in conjunction with 3M™ Fire Barrier RC-1 Restricting Collars. When the wrap is installed “in-hole” in conjunction with a 3M™ Fire Barrier Sealant or Mouldable Putty+, it also offers a cold smoke seal, which helps prevent the spread of toxic gases and other combustion by-products even before heat initiates the intumescent process.

Features

• Firestop tested up to 4 hours in accordance with ASTM E 814 (UL 1479)
• Intumescent firestop and cold smoke seal
• Used to firestop metallic and non-metallic pipes, insulated pipes and cable bundles in “in-hole” applications or as part of a collar assembly



Brand: 3M
Colour: Red
Consumer Label: No
Fire Rating: 4 Hour
Length: 24 Inch
Length (Metric): 610 mm
Product Family: Fire Barrier Wrap Strips FS-195+
Product Type: Intumescent Strip, Wrap Strip
Water Tight: No
Width: 2 Inch
Width (Metric): 51 mm
