Asphalt Anchors SP10-38 – BoltHold 3/8″ x 6″ (Per Each)

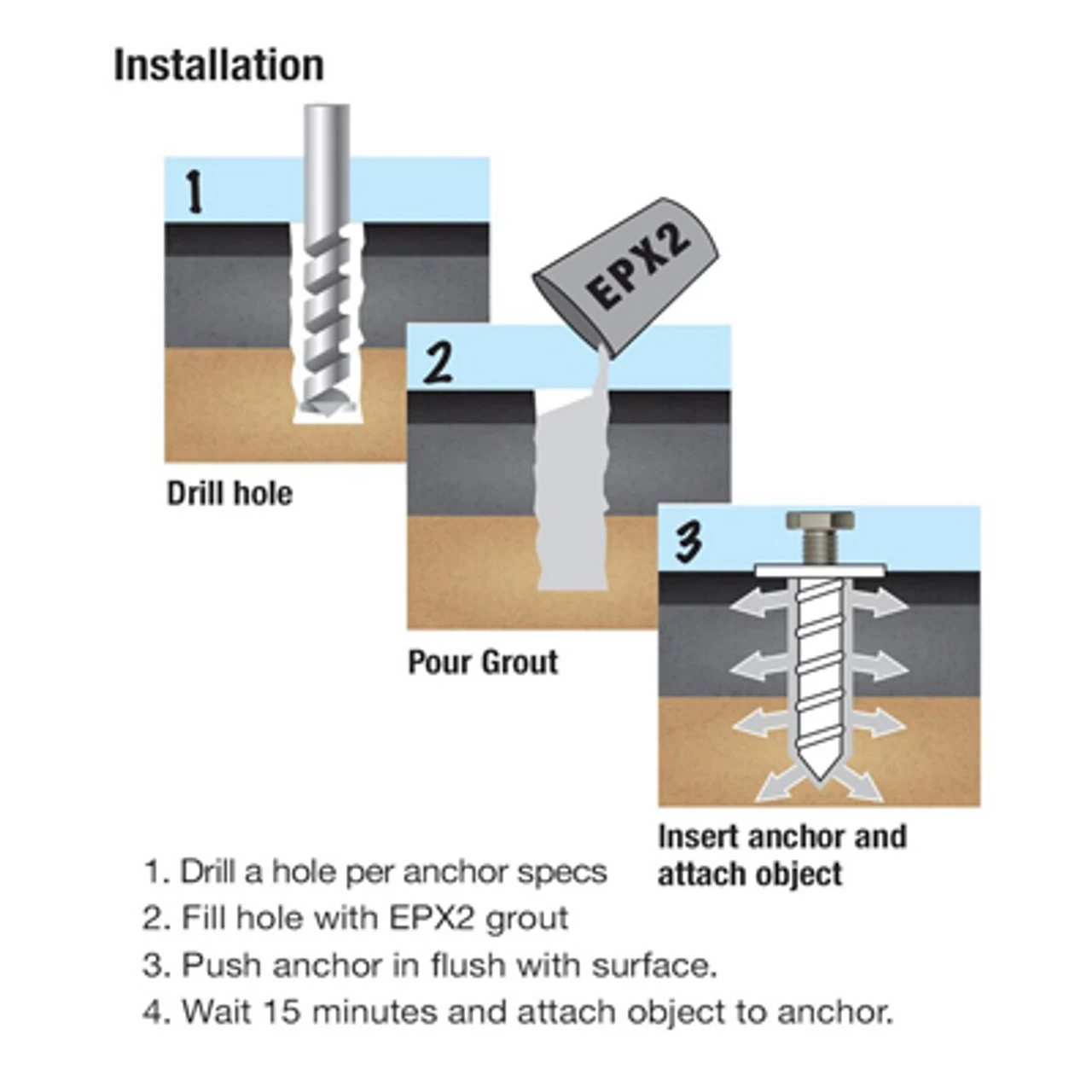

Each anchor incorporates a 3/8″-16 UNC female tread. The tread of the bolt inside the anchor should not exceed 2.5″. The anchor requires a 7/8″ hole 6″ deep and the use of a grout such as EPX2. A 1.4″ welded washer at the top of the anchor prevents the anchor from dropping down below the surface as well as preventing the anchor from being pulled up into the mounting plate when the bolt is tightened.

SP10-38K is anchor rated at 1,500 lbs. pull. The 6″ long anchor is designed to mount plates, fences, machinery directly to asphalt surfaces.

The SP10 anchors are mounted flush with the surface, so that attached devices can be removed without leaving screws or protrusions.
The anchor should be ready for use in 15 minutes (depending on the grout and ground temperature)
Always consult the latest installation instructions before installing these anchors.

Specifications:

• Body Diameter: 3/8″
• Finish: Zinc
• Material: Carbon Steel
• Thread: UNC
• Thickness: 0.08″
• Thread Depth: 2.5″
• Pull Rated: 1,500 lb
• Shear Rated: 1,000 lb
• Torque Rated:220 lb-in
• Drill Hole:7/8″

Applications:

• Bike & Kayak Racks
• Fences
• Signage
• Solar Panels
• Carports
• Speed Bumps/Humps
• Parking Blocks/Stops
• Oil drum tie down
• Parking Barriers
• Sound Barriers
• Railings and Guardrails
• Shopping cart corrals
• Road Plates
• Lighting
