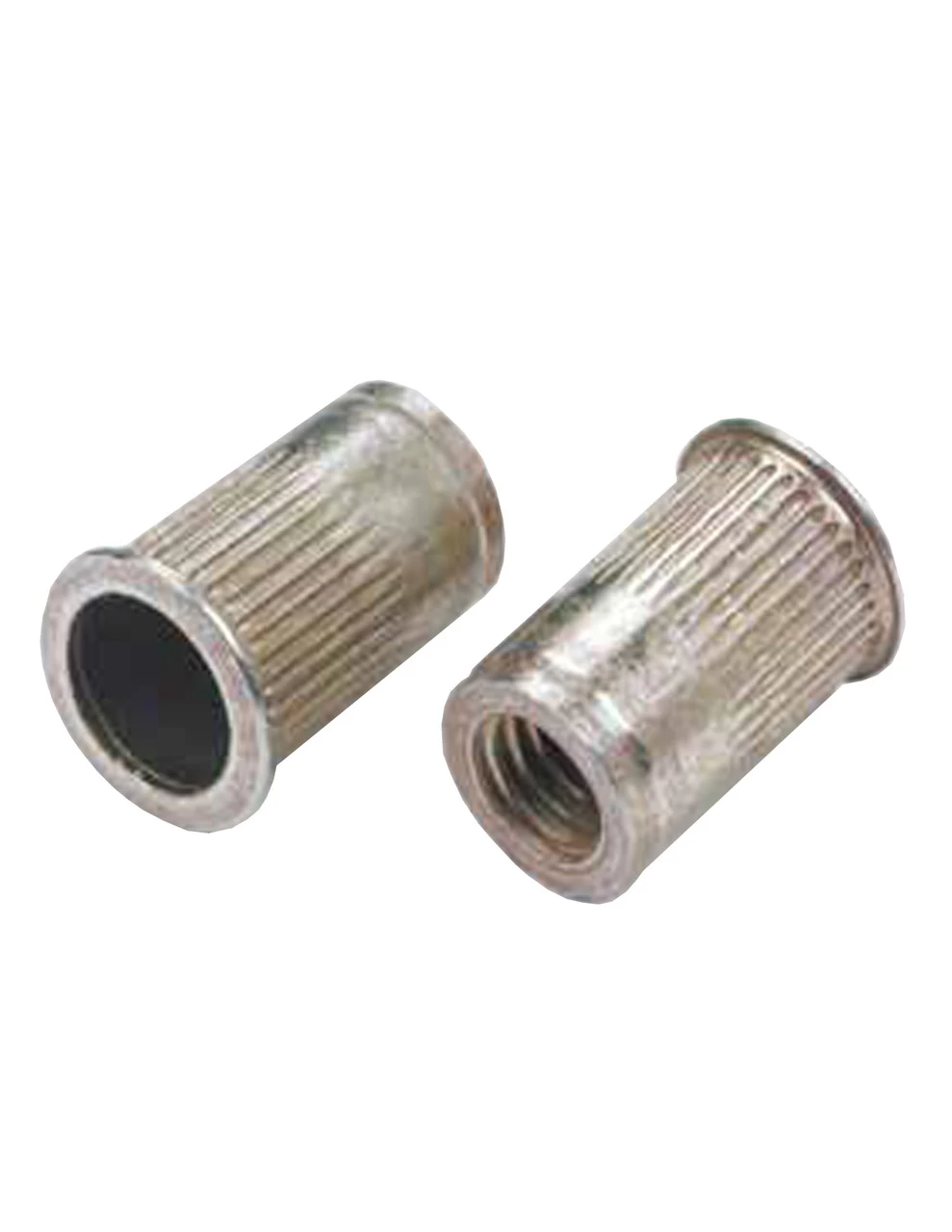

Avdel DKS420-165 Nutsert Low Profile 1/4-20

SOLD PER EACH

The Avdel Thin Sheet Nutsert is a blind threaded insert designed to provide load bearing threads in thin sheet materials. The large flange version gives the Thin Sheet Nutsert rivet nut a greater load bearing surface whilst a closed end prevents the ingress of dirt and fluids into the thread and electrical circuits.



Key features and benefits

• Can be used in very thin sheet materials from 0.50mm (.020″)
• Wide grip range provides a placing capability in material thickness ranging from 0.5 mm (.020″) up to 7.9 mm (.312″)S
• Splined body provides increased torque-to-turn resistance over conventional non-splined inserts
• Low profile head allows near flush seating without special hole preparation
• Large flange version provides a large bearing surface which increases push-out performance
• Reduced tail end diameter offers ease of hole entry



Assembly applications

• Automotive
• Electrical engineering
• Electronic components
• Sheet metal
• Domestic appliances
• General light fabrication

Specifications

• Thread Sizes: M4-M10
• Materials: Steel, stainless steel, aluminium
• Headforms: Low profile, countersunk and large flange
• Body: Splined
• Hole Size: Mainly imperial. Soft metric for large flange options
