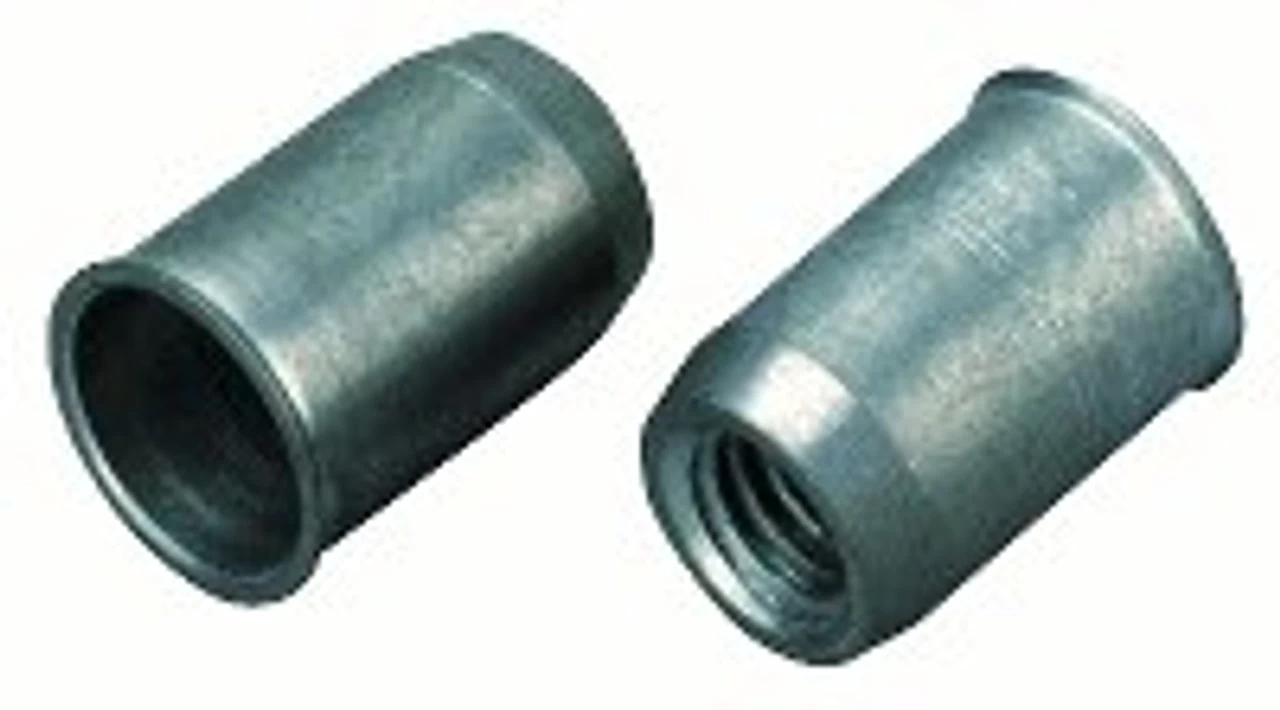

Avdel Thin Sheet Nutserts

The Avdel Thin Sheet Nutsert is a blind threaded insert designed to provide load bearing threads in thin sheet materials. The large flange version gives the Thin Sheet Nutsert rivet nut a greater load bearing surface whilst a closed end prevents the ingress of dirt and fluids into the thread and electrical circuits.

Key features and benefits

• Can be used in very thin sheet materials from 0.50mm (0.02″)
• Access needed from only one side of the application, for high speed assembly
• Provides a female thread in application
• Can be installed in pre-coated or post painted applications without damaging the surface
• Various platings available to increase the corrosion resistance
• Low profile head allows near flush fit to application and clamps two or more sheets of material together, within the grip range
• Large flange head provides a load bearing surface and reinforces the hole to prevent push-out. Can be used as a spacer and can be supplied with an under-head seal
• Closed end prevents the ingress of dirt and fluids into thread and electrical circuits
• Can be used with hand tools, pneumatic tools and fully automated machines to suit a wide range of assembly methods

Assembly applications

• Automotive
• Electrical engineering
• Electronic components
• Sheet metal
• Domestic appliances
• General light fabrication

Specifications

• Thread Sizes: M3-M10
• Materials: Steel, stainless steel, aluminium
• Finishes steel: Zinc plated and clear trivalent passivated
• Headforms: Low profile, countersunk and large flange
• Option: Closed end
• Hole Size: Mainly imperial. Soft metric for large flange options

Sold per piece
