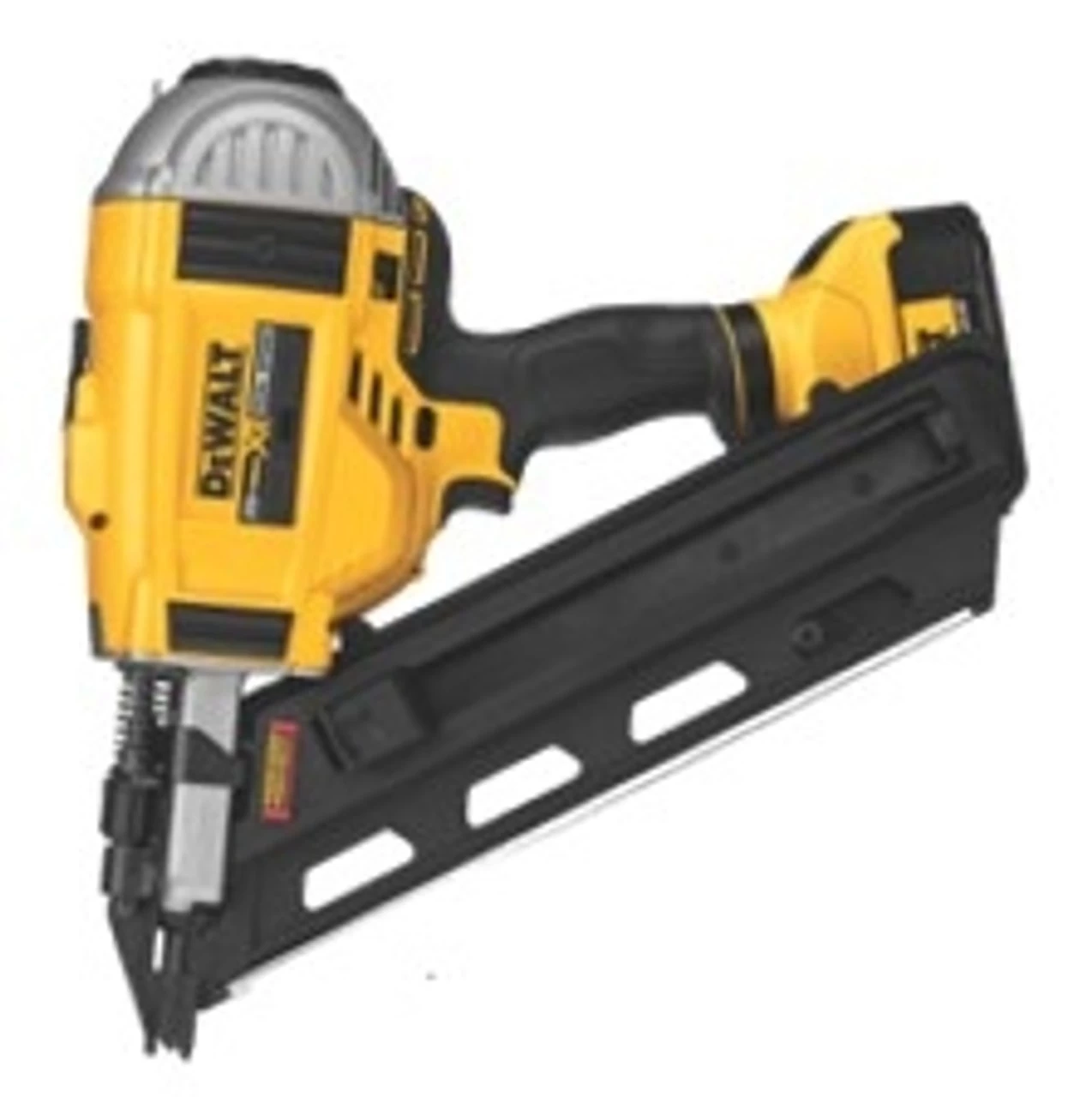

Dewalt 20V MAX XR Lithium Ion Brushless Dual Speed Framing Nailer

PART# DCN692M1

Features:

• Brushless motor and engine design offers enough power to drive 3 1/2″ nails
• Sequential operating mode enables precision placement and bump operating mode offers the user production speed
• Dual Speed allows motor speed for different nail lengths
• Quick access to the nose piece for the removal of jammed nails
• Trigger Lock-Off enables trigger to be disabled when tool is not in use
• Top Cap is impact resistant and quick to remove for troubleshooting
• Accepts 30-34 degree paper tape nails. Clipped head or Offset Full Round Head
• Stall Release Lever quickly resets the drive blade

Specifications:

Nail Diameter	.113 – .131gauge
Voltage	20
Nail Length Capacity	2″ – 3-1/2″
Magazine Angle	33°
Nailer Operating Mode	Bump/Sequential
Front Handle Style	Contoured/Overmold
Magazine Capacity	55
Magazine Loading	Lock & Load
Jam Clearing	Yes
Integrated Belt Hook	Yes
Tool Height	13.75″
Tool Width	4.7″
Tool Length	16″
Tool Weight	9.1lbs

Includes:

• DCB101 Charger
• (1) 20V MAX XR Premium Li-Ion Battery (4.0 Ah)
• No-Mar Tip
