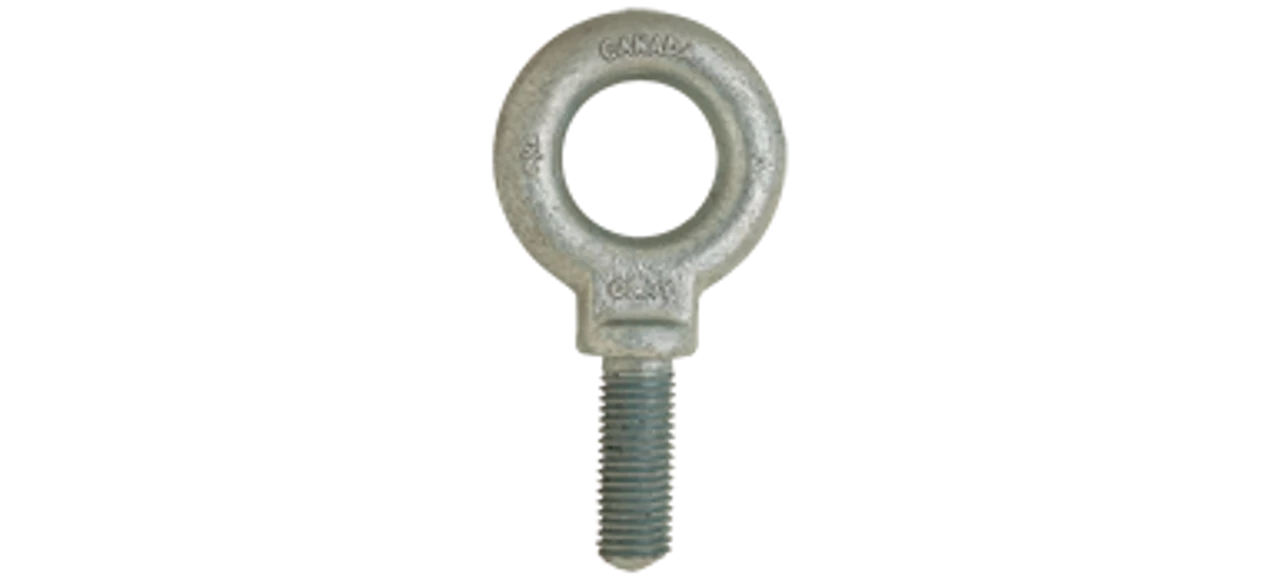

Gray Tools 3/8″ SAE Shoulder Pattern Eyebolts – Galvanized

Gray Tools 3/8 inch SAE Shoulder Pattern Eyebolts – Galvanized

• Thread Size, UNC-2A : 3/8 – 16
• Shank Length : 1-1/4″
• I.D Eye : 1″
• O.D Eye : 1-11/16″
• Overall Length : 3-9/32″
• Net Weight : 0.17lbs
• Working Load Limit : 1,500lbs
• Forged from bar quality fine grain C1030 / C1035 steel bar
• Proof-tested n accordance with ASTM A489 and Federal Spec. ANSI B18.15.

**Load should never be applied at more then a 45° angle from the bolt centerline. The rated capacity is reduced to 25% when the load is applied at a 45° angle to the eyebolt centerline***
