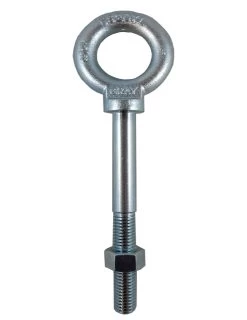

Gray Tools BS16 1/2″ SAE Shoulder Pattern Eyebolts

• Thread Size, UNC-2A : 1/2 – 13
• Shank Length : 1-1/2″
• I.D Eye : 1-3/16″
• O.D Eye : 2-1/8″
• Overall Length : 3-31/32″
• Net Weight : 0.38lbs
• Working Load Limit : 2,600lbs
• Forged from bar quality fine grain C1030 / C1035 steel bar
• Proof-tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15.

** Load should never be applied at more than a 45° angel from the bolt centerline. The rated capacity is reduced to 25% when the load is applied at a 45° angle to the eyebolt centerline ***
