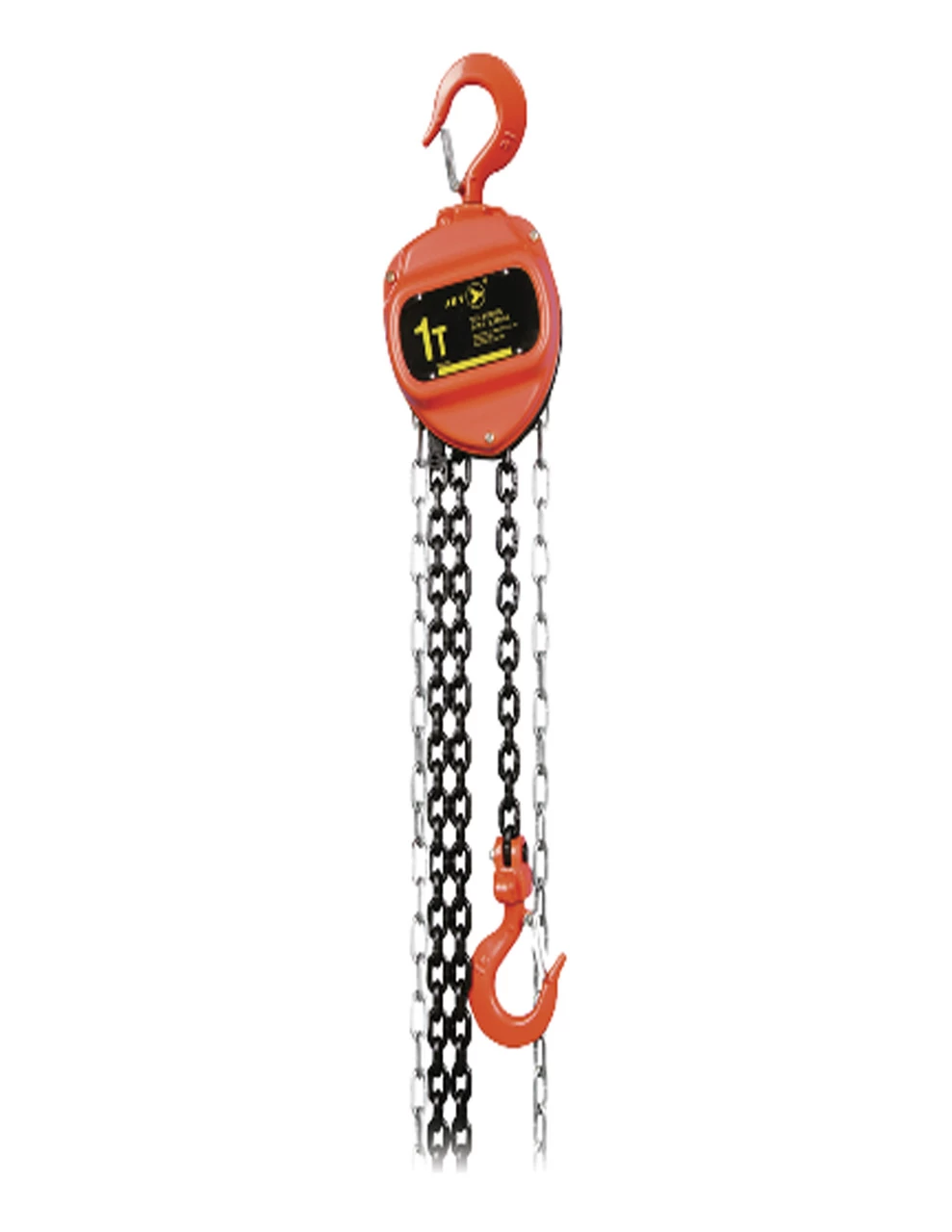

Jet 101012 Chain Hoist – VCH Series – 10′ Lift – 1 Ton

Features:

• Triple spur geared for efficient operation
• Hardened steel roller bearings support load sheave for easy operation
• Dual pawl Weston style brake for safe reliable operation
• Exclusive premium grade, non-asbestos brake discs for longest life
• Grade 80 load chain
• Top and bottom safety hooks bend slowly to warn of overloads
• Load tested to 150% of rated capacity with certificate
• Meets ASME B30.16 standards
• ISO 9001-2000 certified factory

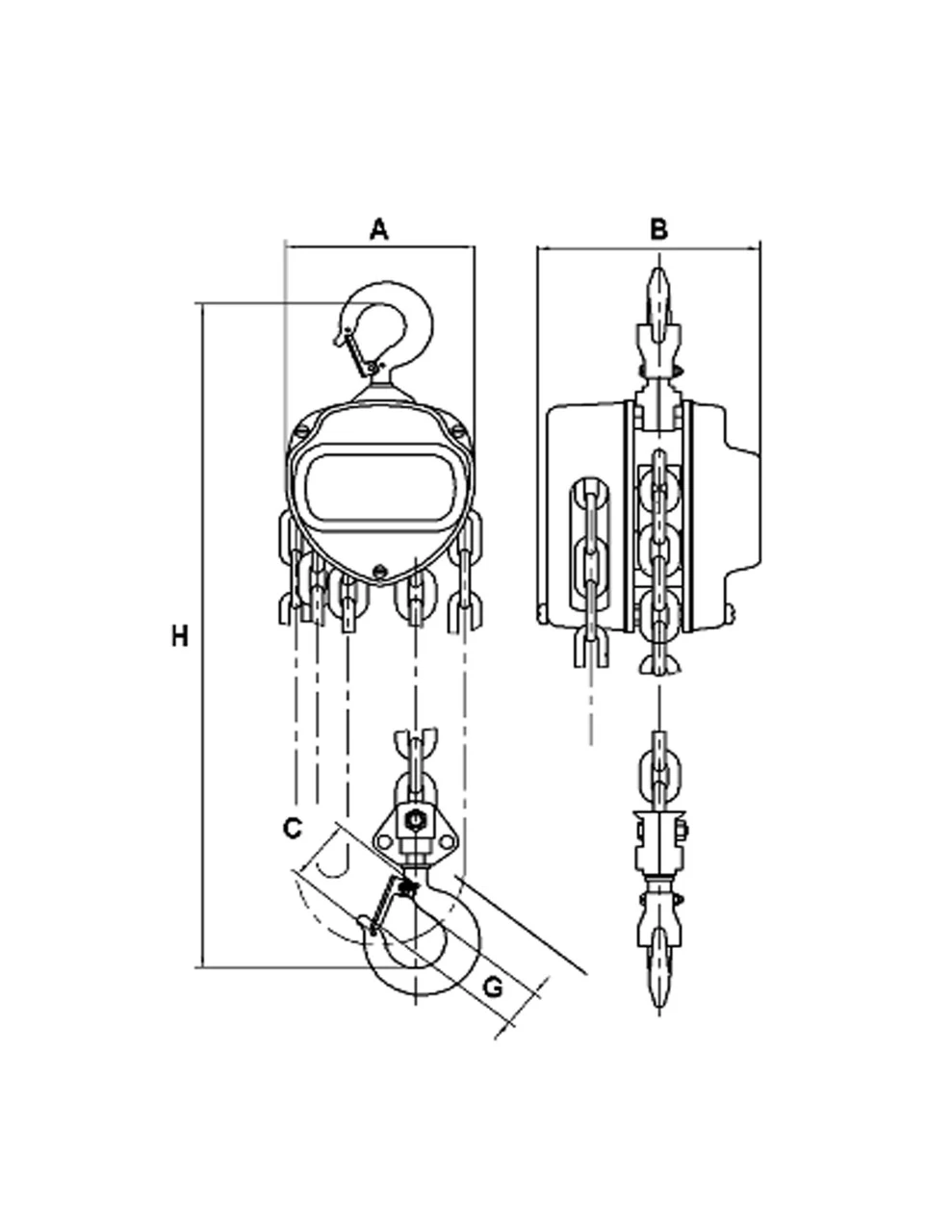

Specifications

• A – 5-3/4″
• B – 5-1/2″
• C – 45 mm
• Force Req. to Lift Capacity – 68 lb
• G – 33 mm
• H – 12-1/16″
• Head Room – 12-1/16″
• Length of Hand Chain Pulled to Lift Load 1′ – 40′
• Load Chain Diameter – 6.0 mm
• Number of Falls – 1
• Product Weight – 24.2 lb (11 kg)
• Rated Lifting Capacity – 2,200 lb1 T
• Shipping Weight – 25.1 lb (11.4 kg)
• Standard Lift – 10′
