Jet 101152 5 Ton 10′ Lift KCH Series Chain Hoist – Heavy Duty

The JET KCH series chain hoists are designed for portability and durability and made to perform in a wide range of industrial lifting and pulling applications.

• Professional grade triple spur gear is lightweight and portable

• Dual pawl Weston style brake with heavy-duty springs provides safe and reliable operation

• Made with premium grade non-asbestos brake discs for long service life

• Maintenance free sealed bearings provide easy operation

• Load tested to 150% of rated capacity and includes certificate

• Heavy-duty ratchet gear protects brake disc from contamination

• Made with premium grade 100 heat-treated alloy steel load chain

• Top and bottom safety hooks are engineered to bend lowly in case of accidental overload

• Made with a hi-viz safety orange finish

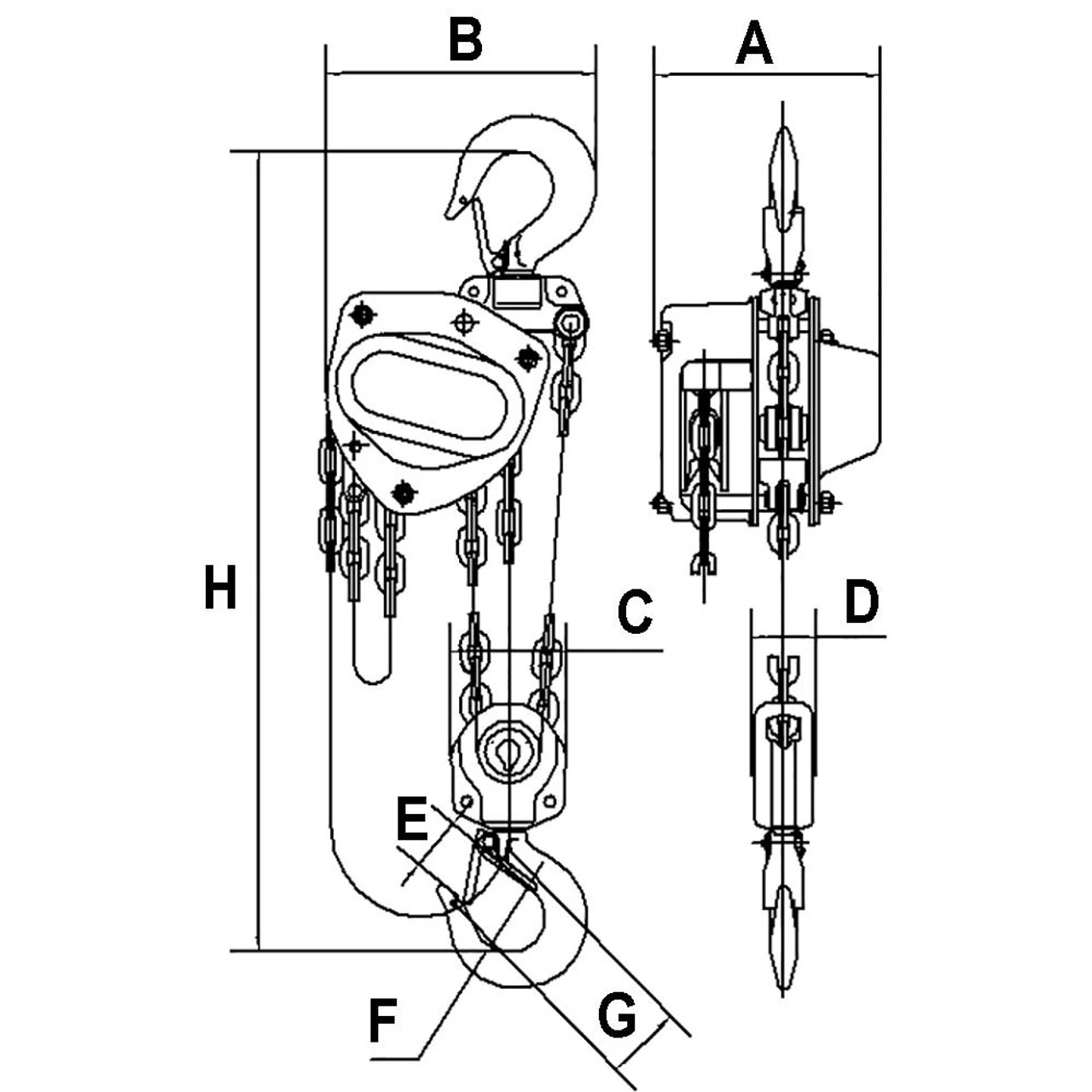

TECHNICAL SPECIFICATIONS:

A
7-1/2″
B
11-1/8″
C
2-5/8″
Capacity (lb.)
11,000 lb
Capacity (T)
5 T
Certification
ASME B30.16 standards|ISO 9001-2000 certified factory
D
2-1/2″
Duty Level
Heavy Duty
E
51 mm
F
60 mm
Force Required to Lift
83 lb
G
78 mm
H
23-5/8″
Head Room
23-5/8″
Length of Hand Chain Pulled to Lift Load to 1′
198′
Lift (ft.)
10′
Load Chain Diameter
9.0 mm
Load Chain Grade
100
Min. Distance Between Hooks
23-5/8″
Number of Falls
2
Number of Safety Hooks
2
Special Features
Non-asbestos brake discs
