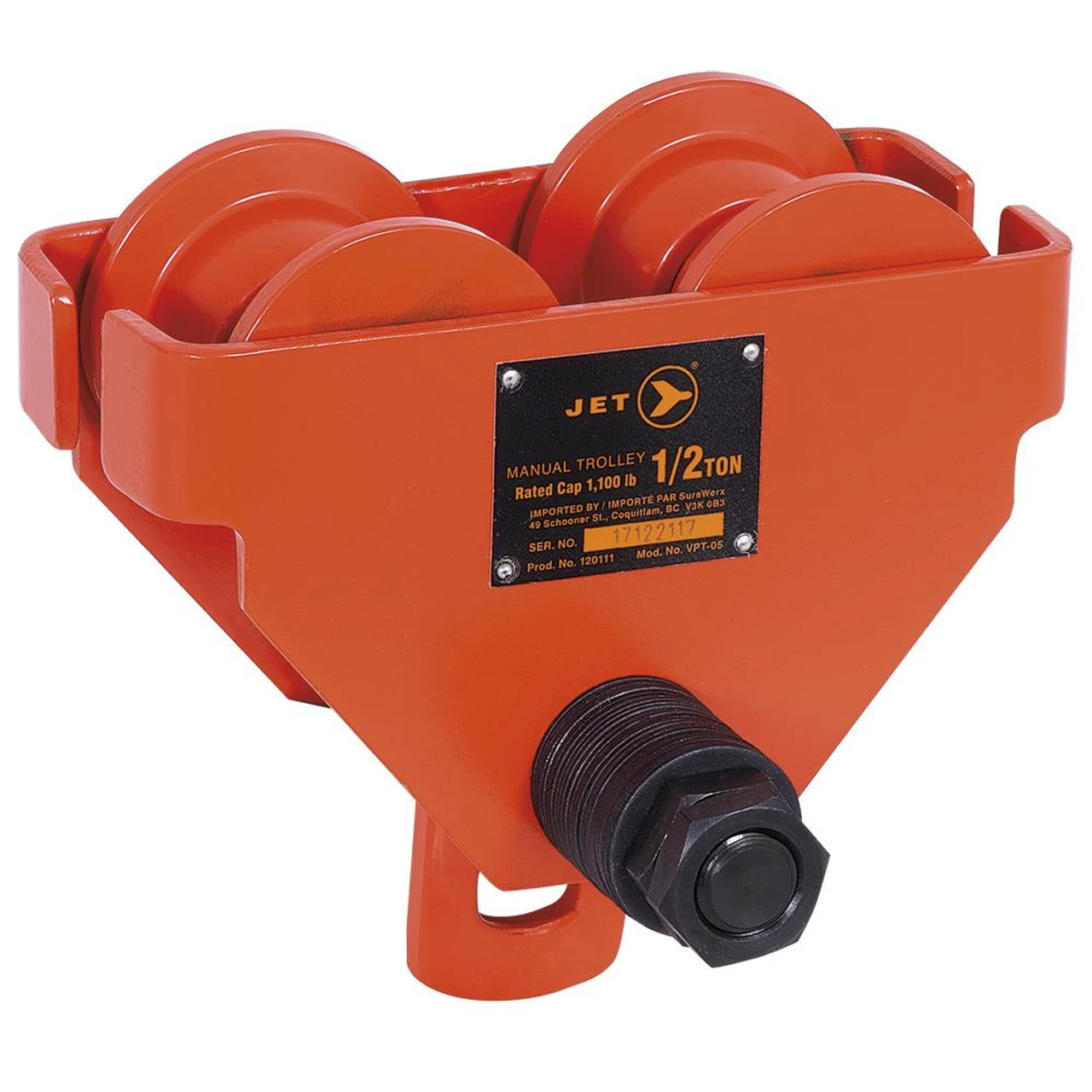

Jet 120111 1/2 Ton VPT Series Manual Trolley

• Specially designed integrated drop stops/bumpers take the load in the event of wheel failure and prevent the wheels from contacting other trolleys on the track
• Adjustable to fit securely on a wide range of flanges and beam widths
• Can be installed or removed at any point along the track
• Use on straight or curved H and I beams

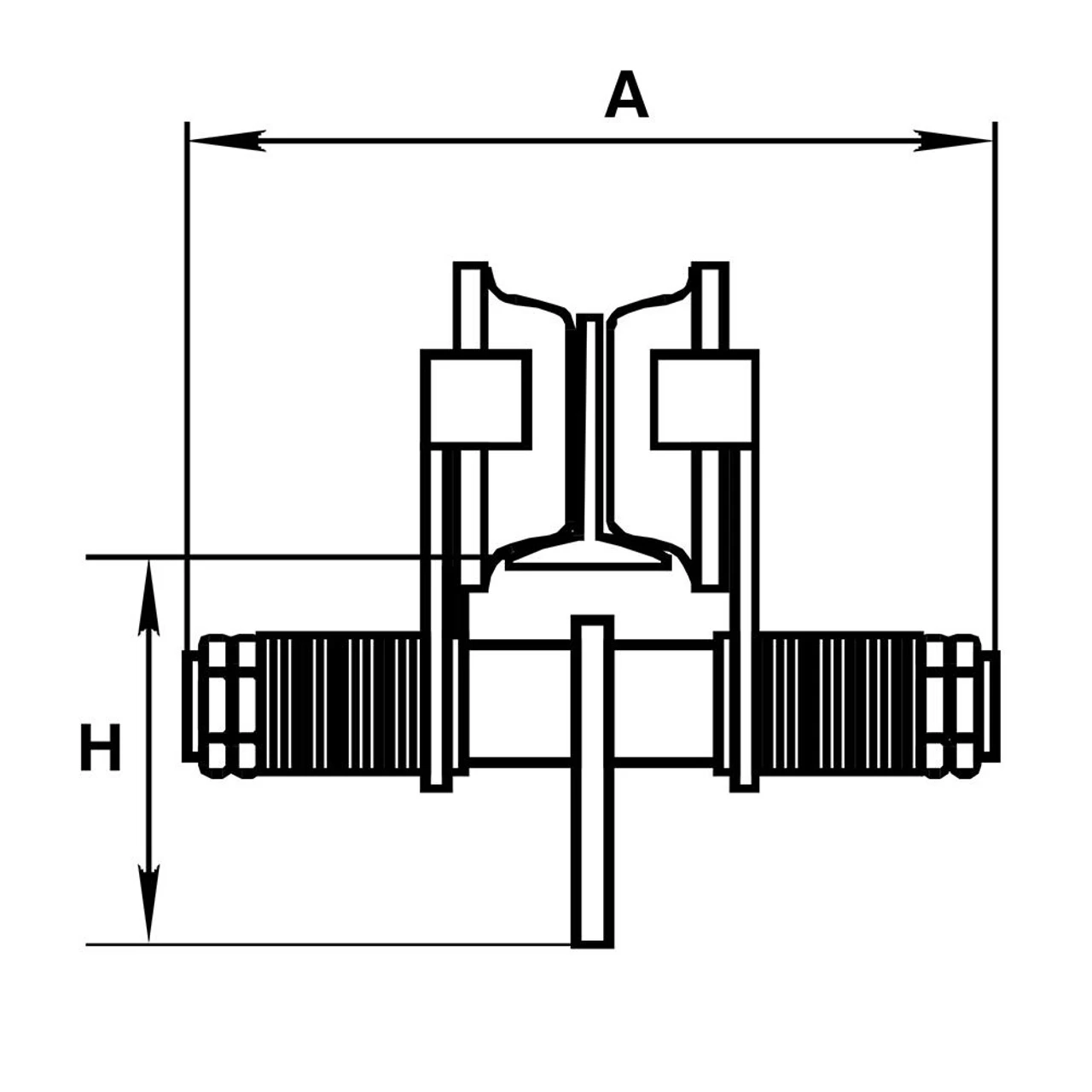

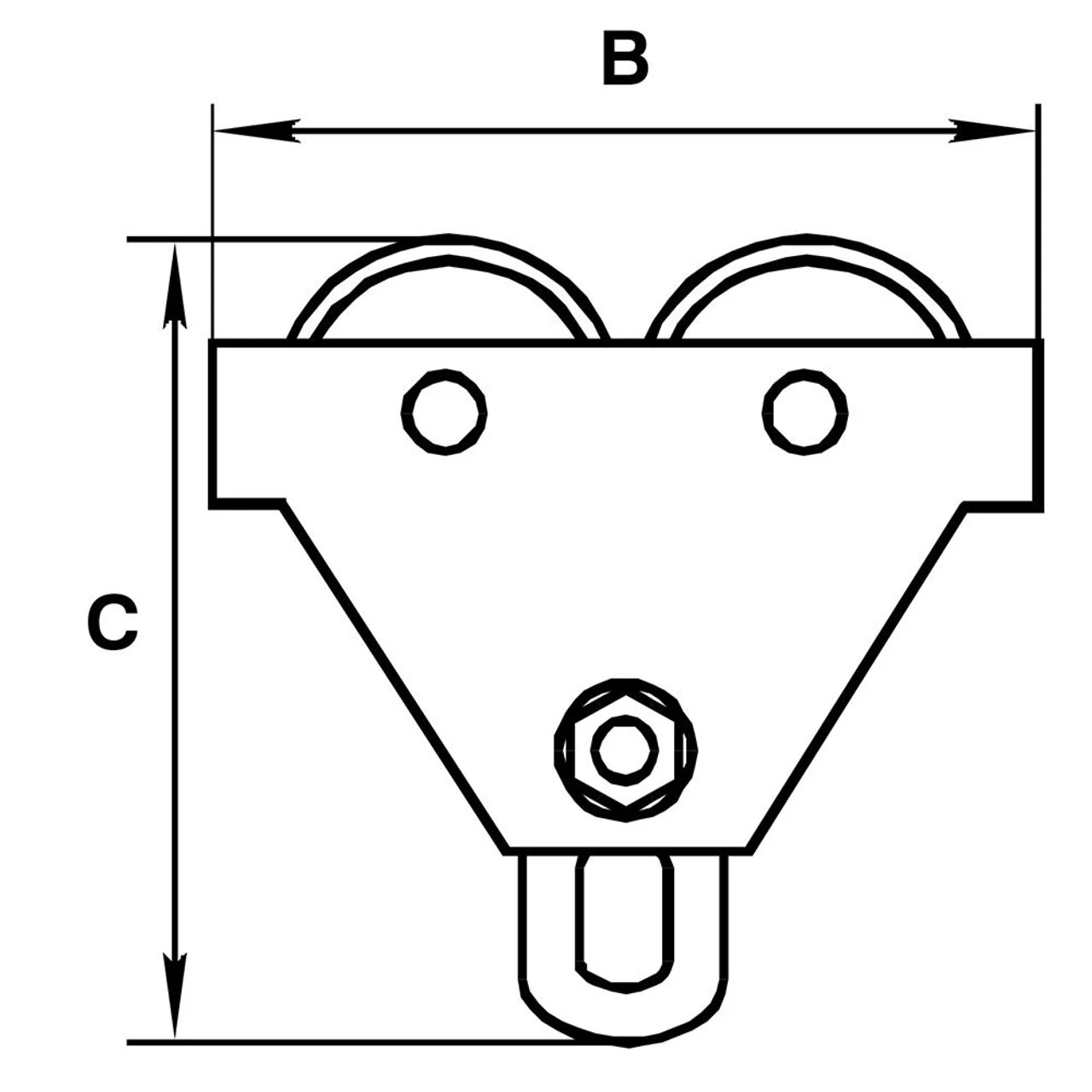

Specifications:

A
9-1/16″
B
8-11/32″
C
7-13/16″
H
4-29/64″
I-Beam Flange Width (H)
2-1/2 – 5-1/2″
Min. Curve Radius
36″
Rated Capacity
1,100 lb
Rated Capacity
1/2 T
Shipping Weight
15.5 lb (7 kg)
