Jet 120615 VBC-2 2-Ton VBC Series Beam Clamp

• Robust, all steel construction
• Can be adjusted to fit securely on a wide range of flange and beam widths
• Meets ANSI B30.11 specifications (certificate included)
• Tested to 125% of rated capacity
• Built in suspension bar provides ultra-low headroom
• Extension kits available for use on larger beam widths

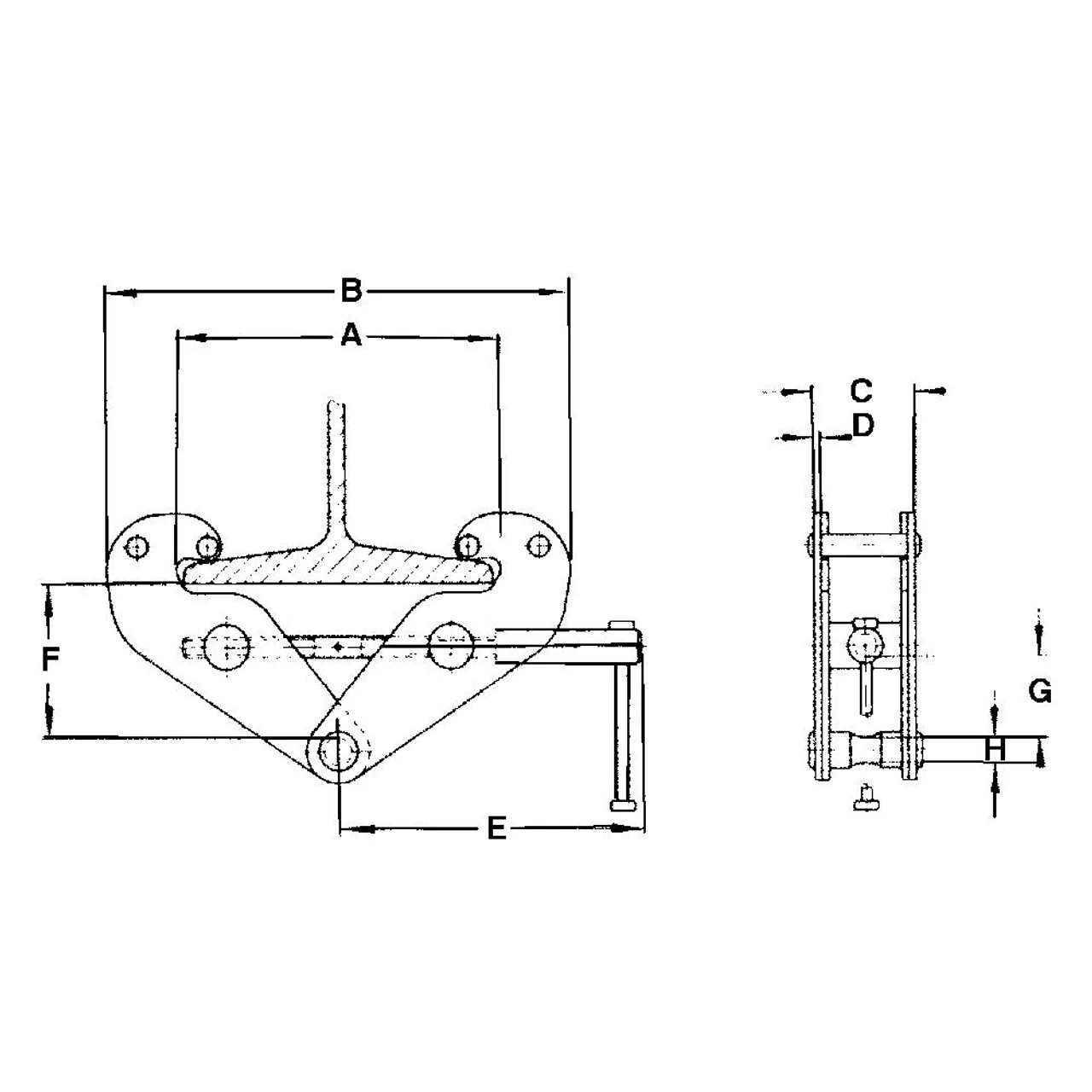

TECHNICAL SPECIFICATIONS:

C
2-29/32″
Capacity
2 T
D
1/2″
E
8-15/32″
G
63/64″
H
7/8″
Maximum A
10-1/4″
Maximum B
14-11/64″
Maximum F
4-1/64″
Minimum B
7-3/32″
Minimum F
6-3/32″
Rated Capacity
4,400 lb
Rated Flange Width
2-61/64 – 8-21/32″
Shipping Weight
11 lb (5 kg)
