Jet 101002 Hoist Lever 1/2 Ton 10′ Chain

Features:

• Triple spur geared for efficient operation
• Hardened steel roller bearings support load sheave for easy operation
• Dual pawl Weston style brake for safe reliable operation
• Exclusive premium grade, non-asbestos brake discs for longest life
• Grade 80 load chain
• Top and bottom safety hooks bend slowly to warn of overloads
• Load tested to 150% of rated capacity with certificate
• Meets ASME B30.16 standards
• ISO 9001-2000 certified factory

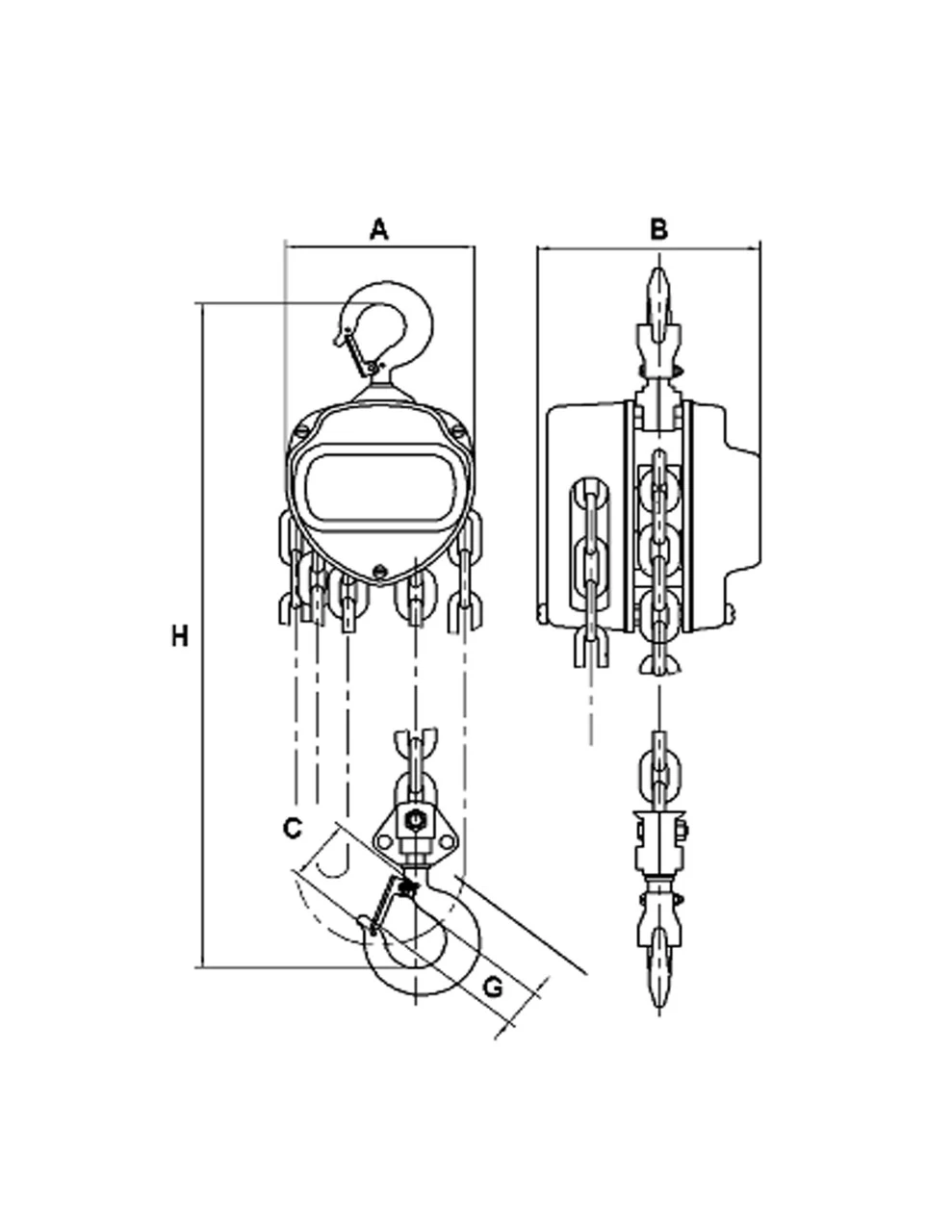

Specifications (See Photo)

• A – 4-15/16″
• B – 4-13/16″
• C – 35 mm
• Force Req. to Lift Capacity – 49
• G – 27 mm
• H – 11-1/32″
• Head Room – 11-1/32″
• Length of Hand Chain Pulled to Lift Load 1′ – 27′
• Load Chain Diameter – 6.0 mm
• Number of Falls – 1
• Product Weight – 19.756 lb (8.98 kg)
• Rated Lifting Capacity – 1/2 T1,100 lb
• Shipping Weight – 20.3 lb (9.2 kg)
• Standard Lift – 10′
