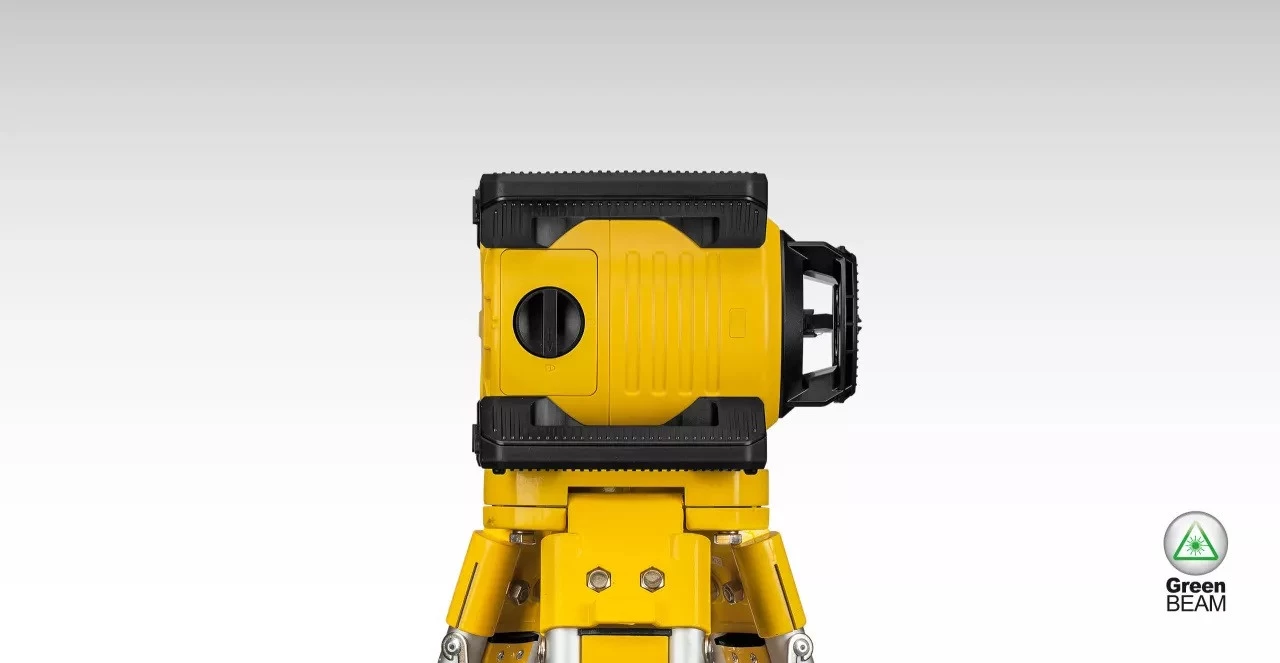

Stabila 04510 LAR 160 G Rotation Laser Kit

The STABILA LAR 160 G with green laser beams is quick to set up and easy to operate, the laser really comes into its own when used over large distances and linked to a receiver. All in all, it is a high-quality product that delivers precise results.

Features:

• Fully automatic, motor-driven rotation laser – high levelling accuracy of ± 0.1 mm/m, fast self-levelling function within 20 seconds.
• STABILA GREENBEAM technology for improved visibility of the rotating laser beam – green laser beams are four times more visible to the human eye than red beams.
• Four laser functions for versatile use – horizontal and vertical rotation, plumb-line function and right angle (90°) in vertical operation.
• Protection class IP 65 – dustproof and waterproof.
• Shock-absorbent STABILA soft grip casing provides protection against impacts – the stable housing cover also protects the laser optics.
• Easy to use via three control buttons – on/off, tilt mode, manual mode.
• Battery drawer – easy replacement, even directly on the tripod.
• Large working area with REC 160 RG set receiver – up to 600 m in diameter.
• Two 5/8″ threads integrated in the housing.
• Target plate with magnetic holder and cross-hair.
• Stable carrying case.

Includes:

LAR 160 G rotation laser, REC 160 RG receiver, target plate, carrying case, 2 x D 1.5 V batteries, 2 x AA 1.5 V batteries

Applications:

• For a wide range of tasks in drywall construction – for layout work, when positioning partition walls and suspending ceilings.
• Transfer heights quickly and easily in electrical installation work – align plug sockets, switches and cable ducts horizontally and vertically with one another.
• For installation work in industrial construction – measure planes and determine alignments for routing lines and pipes.
• In industrial assembly applications – measure and align shelving systems in logistics areas.

Technical data:

Laser class2
Output< 1 mW
Laser wavelength510 – 530 nm
Self-levelling range +/-5°
Levelling accuracy +/-0.10 mm/m
Diameter of working area for set receiver600 m
Operating life30 h
Battery typeD
Protection classIP 65
Tripod connection5/8″
